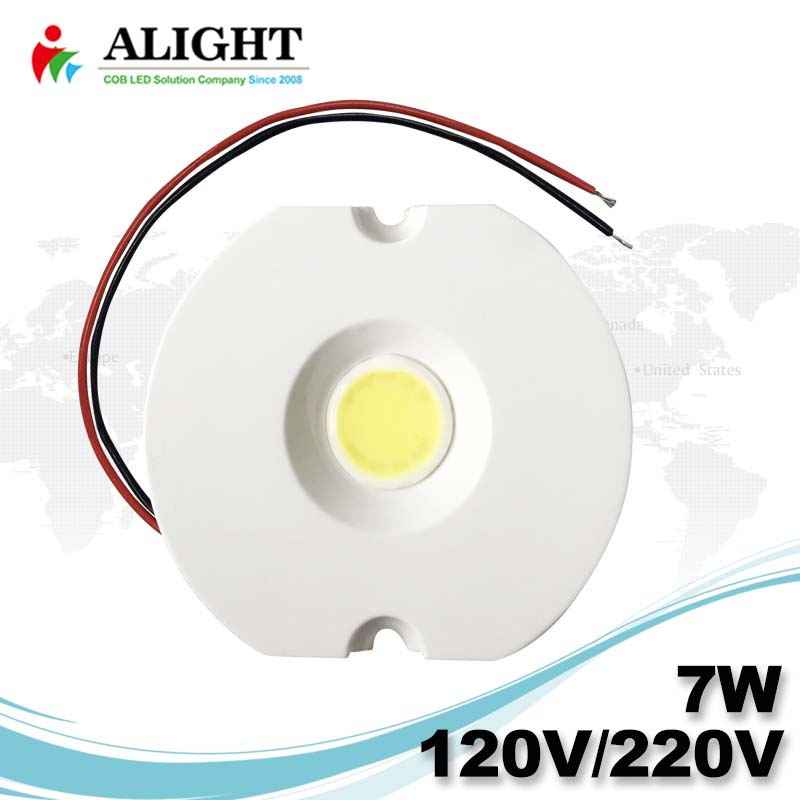

7W 120V/220V Driverless 0-100% Triac Dimmable Soldering Free AC COB LED
Product Detail
Parameter
Product Tags
| Essential Parameter | |
|---|---|
| Item | AL-D11-7W-220V |
| COB LED Type | AC COB LED |
| Power | 7W |
| Voltage | 120V/220V |
| Luminous Flux | 10000lm |
| CRI | 70-80Ra |
| LED Chip | Epistar/Bridgelux |
| Color Temperature (CCT) | 2700K-6400K |
| Certification | CE,RoHS |
| Warranty | 2 years |
| Dimensions | |
| Overall Size | Ф40mm |
| Lighting Size | Ф11mm |
| Lighting Angle | 120°-160° |
| Material | |
| LED Chip | InGaN |
| LED Holder | Plastic |
| Substrate Base | Aluminum/Ceramic |
| Trade Info | |
| Sample price | |
| EXW price | Please send Email to ask latest price |
| Payment Term | Paypal,T/T |
| Weights | |
| Net Weight | 30g |
| Carton Weight | 0.5kg |
The AC COB LED Series:
| Product Picture | Part No. | Power | Forward Voltage |
pcb type | Lumen output |
CCT | CRI |
| AL-CR11Z50H-220VAC | 5w/7w/10w | AC120V/220V | Ceramic/ Aluminum | 100lm/w- 110lm/w | 2700-6400k | 70-80Ra | |
| AL-CR19Z70H-220VAC | 7w/15w/20w/30w | ||||||
| AL-CS10Z100H-220VAC | 10w | ||||||
| AL-CR22Z200H-220VAC | 20w/25w/30w | ||||||
| AL-CS25Z300H-220VAC | 20w/30w | ||||||
| AL-CR25Z500H-220VAC | 50w/100w |
